WingsLevel turns your phone into an attitude indicator with speed, altitude and vertical-speed
tapes, and an HSI or moving map with Direct-To navigation. Its GPS-aided attitude stays true in turns,
where ordinary phone apps drift back to wings-level.
Built for the cockpit: large, readable instruments, night mode, and nothing to
configure before engine start.
Attitude indicator
Pitch ladder, bank scale and aircraft symbol, with a turn indicator (wing tip on the mark
= standard-rate turn) and a slip ball that stays centred in a coordinated turn, even with the
phone slightly rolled in its mount. Full-screen mode with a heading tape. If the phone's sensors ever stop, a red X replaces
the horizon at once: it never shows a frozen attitude as if it were live.
Speed, altitude & VSI tapes
Ground speed, altitude and a smooth vertical-speed indicator from GPS combined with the
phone's accelerometer. Tap the altitude tape to set an altitude bug. Red flags when GPS is poor
or stale.
Barometer for Android New
Android phones with a barometer can now give a steadier altitude and vertical speed. A small free companion app on the same phone passes the pressure to WingsLevel over a local, paired connection; the browser cannot read that sensor itself. GPS altitude stays the reference: the barometer is used only while it is within 100 ft of GPS, so pressurised cabins never fool it, and WingsLevel falls back to GPS at once if the companion stops. On the ground, below 20 kt, the QNH follows GPS by itself. Optional, Android only for now, not certified: compare with the aircraft altimeter. Set it up in Settings, Barometer.
HSI with Direct-To
Magnetic compass rose, like your compass, charts and ATC, with heading bug, bearing pointer and
a GPS course-deviation bar with TO/FROM. Distance, ETA and ETE at a glance.
Moving map & route planning
Switch the lower half from the HSI to a map that follows your aircraft: airports, navaids and airspace, track-up or north-up, red at night. Maps are free and work offline, and the airport cards show the radio frequencies and the weather (METAR and TAF). Direct-To works on the map in every edition. With Pro you plan a route with search or by tapping, hold a finger on the line to add a waypoint, and fly it with automatic leg changes, changing the route in flight whenever you need to. Pro also reads and writes GPX and Garmin FPL files and shows the times, the airspace and the weather along the route.
Direct-To on the horizon
During a Direct-To a sign stands on the destination in the attitude view, and a green flight path
marker shows where the aircraft is really going: turn until it sits on the sign. The heading tape points
to the heading to fly, wind correction included, and an arrow shows the way when the destination is
behind you.
Runway approach path Pro
Line up with a runway and the attitude view shows its extended centreline and gates down an advisory
3° path, with sideways and glide path scales, with or without synthetic vision. It picks the runway by
itself; one tap for the parallel one. A VFR aid for a stable final.
Nearest & search
Nearest airports and navaids by true distance from your GPS position, anywhere in the world,
or search by code, name or town on one Direct-To screen. Runways, surfaces and frequencies for every airport, with what
each frequency is for.
Synthetic vision Pro
3D terrain of the whole world behind the horizon, coloured by height above you, sharp out to the
horizon. Runways sit where they really are, drawn by surface with their markings, with taxiways and
aprons; lakes, rivers, motorways and main roads help you find your way; the airfields around you stand in
the view with their code and distance, the flight path marker shows what you clear, and you can drag to
look around; an optional terrain ahead alert, an airspace alert and callouts speak up when terrain or controlled airspace is in your way; detailed 90 m terrain in the mountains. Download the areas you fly in once and it works with no connection.
Night mode
One tap turns every instrument, button and dialog red on black to protect your night vision.
Mount it your way
Level removes any tilt of your mount on the ground (in flight only when you fly straight
and level, so a turn is never stored as level), and the app learns by itself if the phone points
slightly left or right of the nose, on the takeoff roll.
Flight recorder & replay
Every flight is logged by itself from takeoff to landing (above 20 kt), each in its own file, to review or share.
With Pro, replay it on the ground: the instruments as they were, the track on a map with the airspace around it and a chart of the whole flight.
English, Deutsch, Português
The app, this website and the user manual in English, German and Brazilian Portuguese. Pick the
language at the first start and change it any time in Settings.
No app store needed
Installs from your browser like an app, full screen, keeps the screen on, and offers
updates when you are online: you choose when to install them.
Why phone attitude apps lie in turns
A phone's accelerometer can't tell gravity from the aircraft's own acceleration. In a coordinated
turn, the force you feel points straight "down the seat", so an ordinary phone app slowly
decides the wings are level while you are still banked. The same happens in pitch on the
takeoff roll or when you add power.
WingsLevel runs a GPS-aided Kalman filter, the technique used in real
inertial navigation systems. It compares what the accelerometer measured with how the GPS
says the aircraft actually moved, so it knows how much of the force is turning and
accelerating, and keeps the horizon where it belongs.
In a sustained 30° turnPhone-only appWingsLevel
Bank shown after 90 sdrifts toward 0°30° ± 2°
Pitch on the takeoff rollfalse nose-upstays level
Phone not aligned with the nosebank reads as pitchlearned automatically
Without GPSstandard behaviourgyro coasts, then standard
Figures from the filter's flight simulation tests. Real-world performance depends
on the phone and the mounting.
See it in action
Portrait or landscape, day or night. These are real screens from the app.

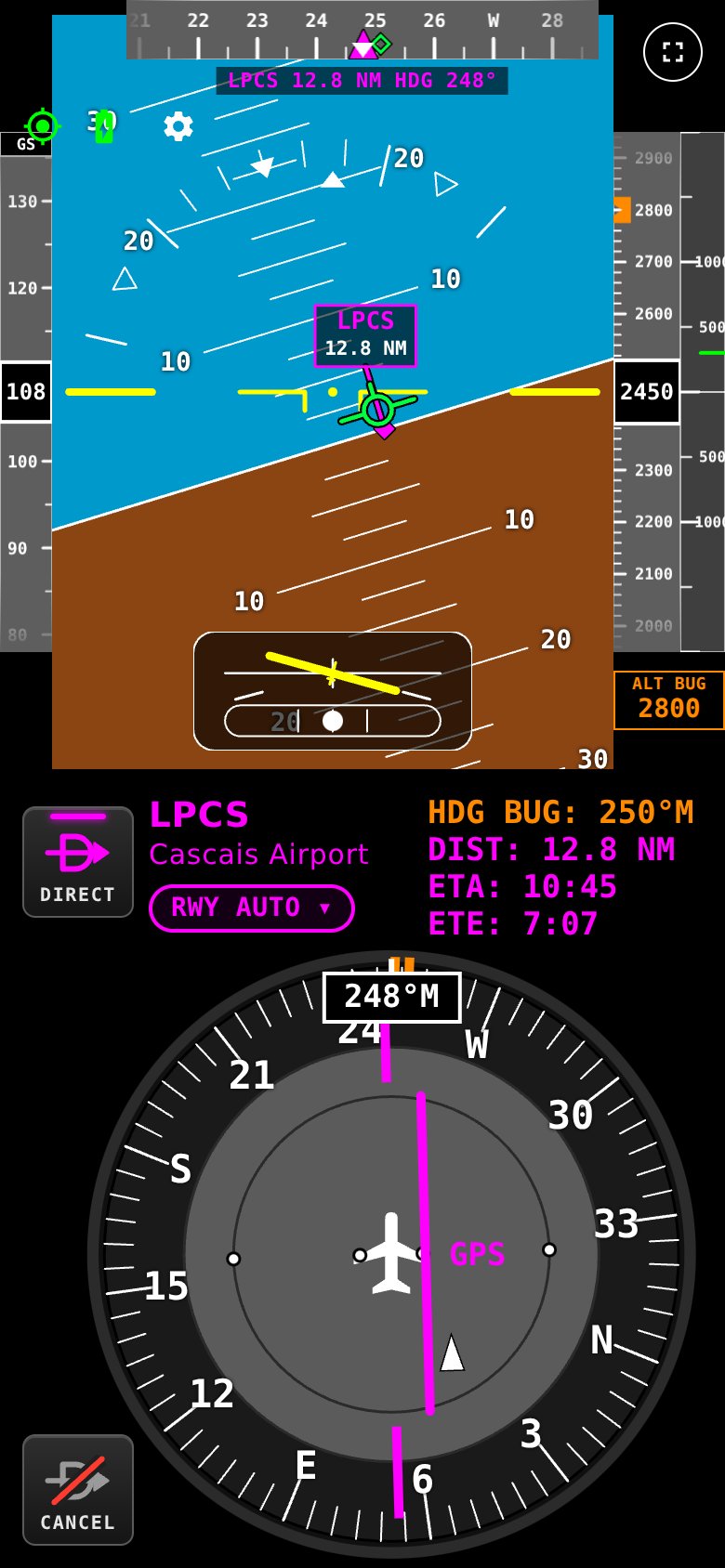

Direct-To on the horizon and the HSI
The moving map with Direct-To
Route planner (Pro)

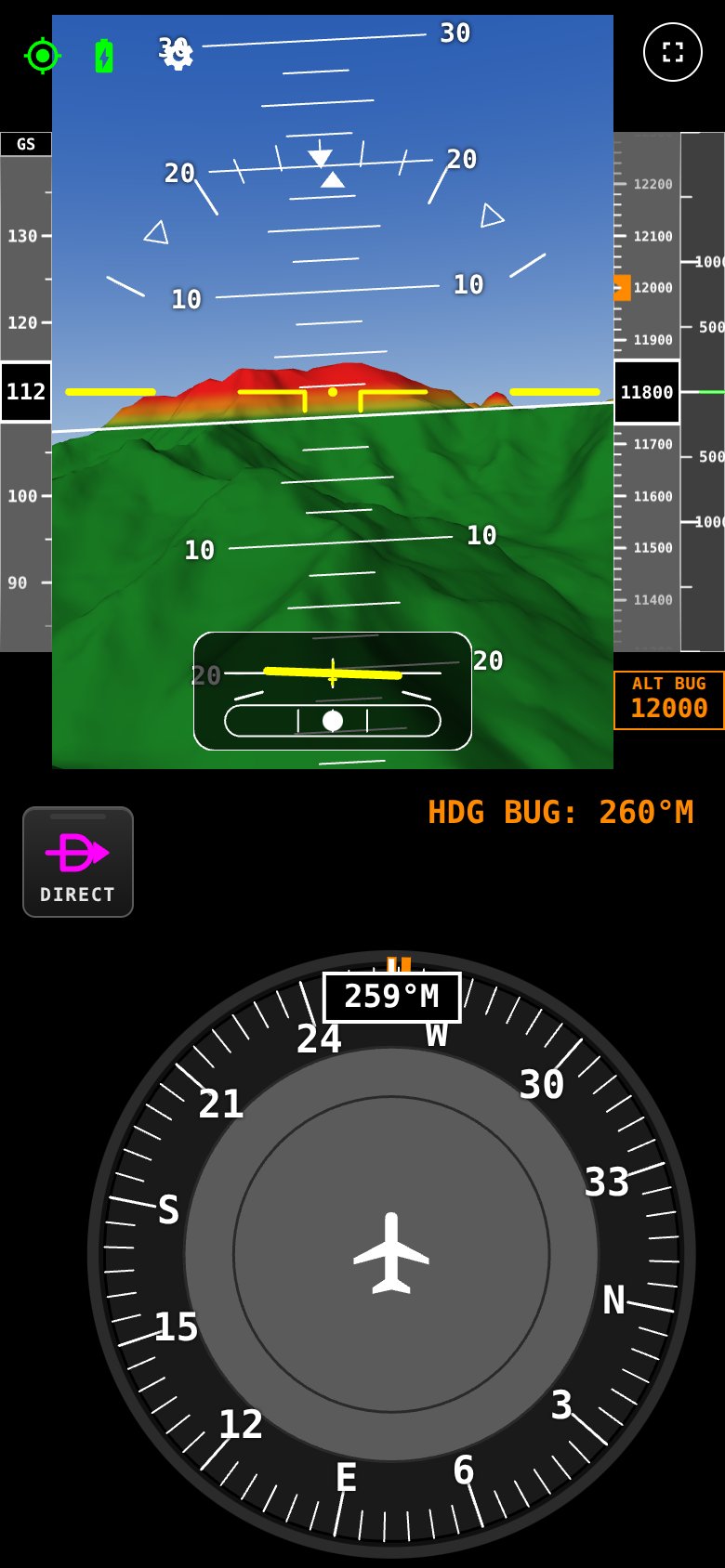

Synthetic vision: high ground in red

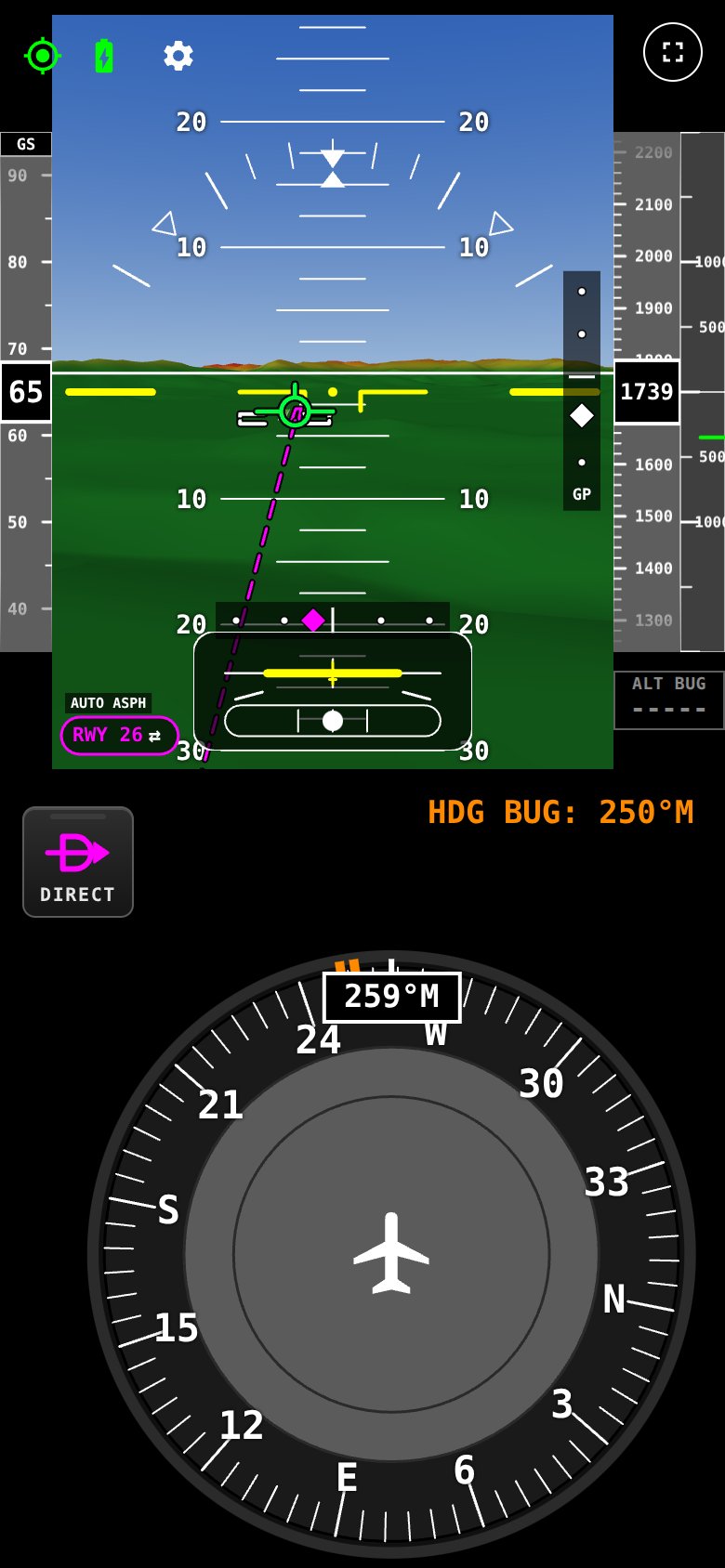

Runway approach path on final

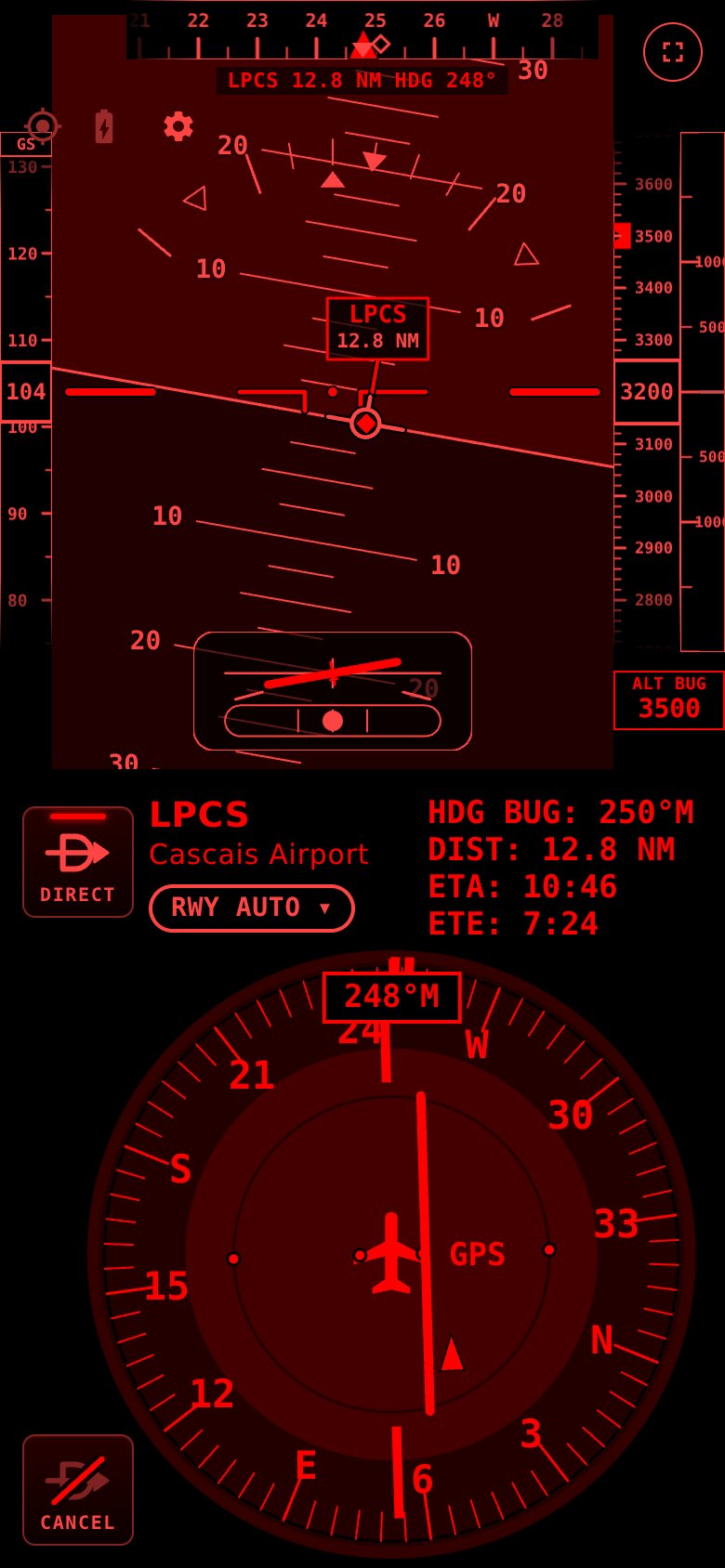

Night mode

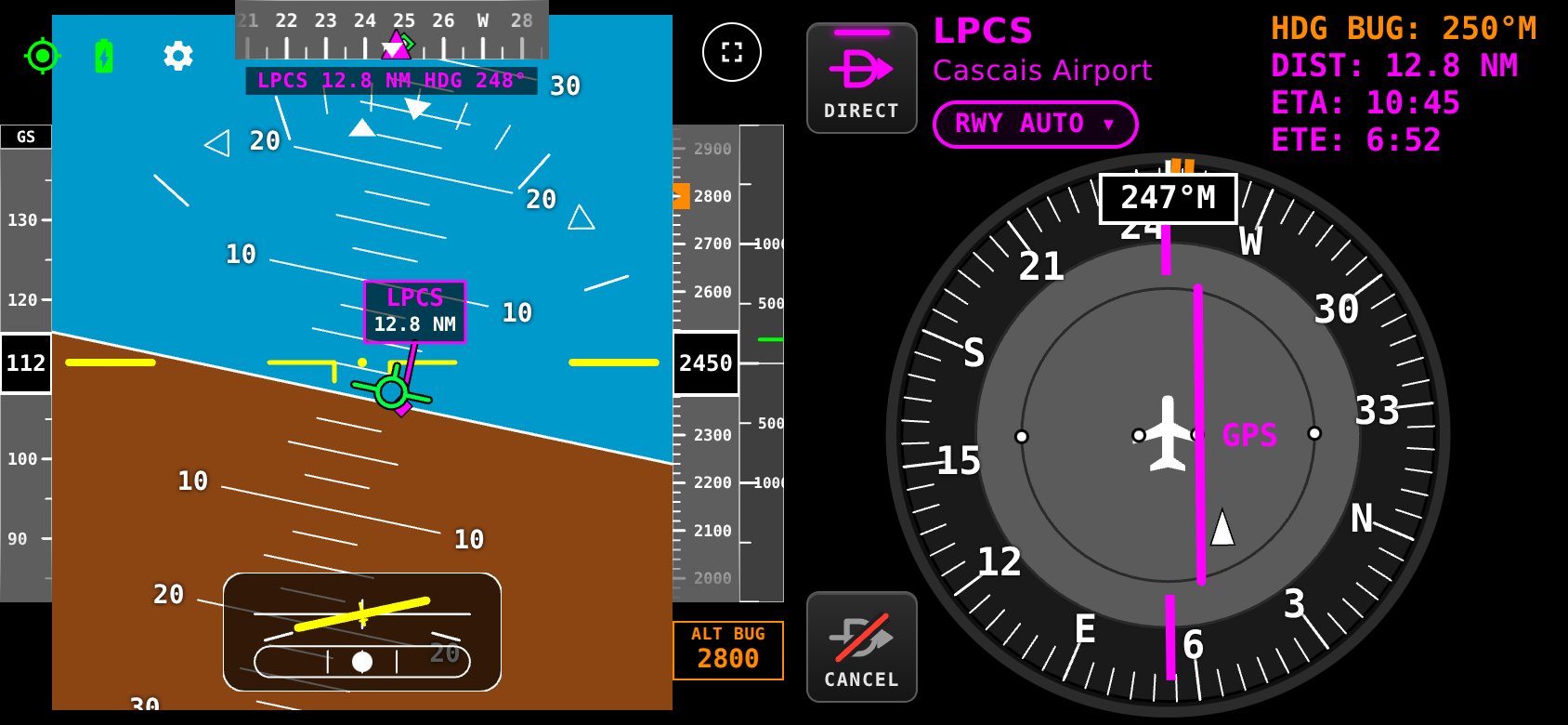

Landscape: attitude and HSI side by side, great for tablets and yoke mounts. Pick portrait or landscape in Settings; the screen never flips in a steep turn
Start the free trial or buy a plan. Your license key is shown right after the payment.
Install on your phone
Open the app on your phone, tap Install app (Android) or Add to Home Screen (iPhone), and
enter your key. In the Terrain Manager, download the areas you fly in while on Wi-Fi.
Mount, level, fly
Mount the phone upright facing you, tap Level on the ground, and go. No signal
needed in the air.
What you need
Android 10 or newer with Chrome and a gyroscope (most phones since 2018). Recommended.
iPhone with iOS 16.4 or newer (Safari).
A sturdy mount that holds the phone upright and a charging cable for long flights.
Simple pricing
Try Pro free for 14 days. Monthly or yearly, cancel anytime. Prices include VAT where applicable.
Prices in
WingsLevel
€35per year
Attitude, turn-and-slip, tapes and HSI
Moving map with Direct-To, airport frequencies, nearest and search
Direct-To with guidance on the horizon
2 devices (phone + tablet)
App and navdata updates
Email support
Most popular
WingsLevel Pro
€50per year
Everything in WingsLevel
Synthetic vision: 3D terrain of the whole world, with airport layouts, lakes and roads
Runway approach path: extended centreline and an advisory 3° path to the runway
Route planning: plan, edit and fly routes on the map, also during the flight; GPX and Garmin FPL files, ETA, airspace and weather along the route
Flight replay: watch your recorded flights again on the instruments and a map with airspace
Airspace alert: a warning before your track enters controlled airspace (off by default)
Offline terrain areas, detailed 90 m in the mountains
App, navdata and terrain updates
2 devices, email support
First 14 days free
Subscriptions renew automatically until you cancel, which you can do at any time in
Paddle's customer portal. The Pro trial needs a card but charges nothing for 14 days; cancel before it ends
and you pay nothing. To switch between WingsLevel and Pro, write to us. 14-day money-back guarantee on every
payment. Payments are processed by our payment partner Paddle, the merchant of record, who also issues your
invoice.
Questions pilots ask
Is WingsLevel certified? Can I fly IFR with it?
No. WingsLevel is not a certified instrument and must not be used for primary navigation or in
instrument meteorological conditions. It is a situational-awareness aid for VFR flight.
Always cross-check with your aircraft's instruments and look outside.
Does it work without mobile signal?
Yes. Once installed, everything runs on the phone: instruments, airports and navaids, and synthetic
vision (after you download the terrain for the areas you fly in). GPS works everywhere; it doesn't
need mobile data.
Where does synthetic vision work, and how much space does it need?
Synthetic vision is part of WingsLevel Pro (and of the free trial). It works everywhere: the terrain covers the whole world, including the US, Canada, Australia, New Zealand,
the UK and all of Europe. You only keep the areas you choose on your phone: most countries take a
few MB to a few tens of MB, and the detailed 90 m terrain for mountainous countries such as Switzerland adds
up to a few hundred MB. Add or remove areas at any time in the Terrain Manager.
How accurate is it?
The attitude filter holds bank within a couple of degrees in sustained turns in our simulations, and
learns your mount's alignment by itself. Real accuracy depends on your phone's sensors and a
solid mount: recent phones from the main brands work best. Speed and altitude come from GPS,
so they are ground speed and GPS altitude, not airspeed or pressure altitude. On Android phones with a barometer, the optional companion app can add a steadier barometric altitude, which is used only while it stays within 100 ft of GPS.
Can I fly an approach with it?
Only as a VFR aid. When you line up with a runway, WingsLevel shows its extended centreline and gates
down an advisory 3° path, built from GPS and open airport data. It is not a published instrument approach,
shows no obstacles and must not be used in cloud. Cross-check with your altimeter and the PAPI, and look
outside.
What happens if a sensor or the GPS stops working?
You see it straight away. If the motion sensors stop, a red X replaces the attitude and the HSI
shows a flag. If the GPS is lost or too imprecise (for example a phone falling back to mobile
network positioning), the speed and altitude tapes show a red X instead of old values, and the
map position is not moved by inaccurate fixes.
Which phone should I use?
Android with Chrome is recommended and gives the best sensor access. iPhones work through Safari.
Use the free trial to check it on your own phone and in your own aircraft before buying.
Can I use it on my phone and my tablet?
Yes, every plan includes 2 devices. You can move a license to a new phone yourself at any time.
What happens to my data?
Your position and sensor data never leave the phone. Your email and payment details stay with
our payment partner, Paddle; we only keep your license and device identifiers. There is no tracking
in the app.
Can I get a refund?
Yes, within 14 days of payment, no questions asked. You can also cancel your subscription at any time
in Paddle's customer portal; it then runs until the end of the period you paid for.
Safety notice. WingsLevel is a non-certified situational-awareness aid. It is not approved by
EASA, the FAA or any other authority, must not be used for primary navigation or IFR flight, and
consumer phone sensors can drift or fail. Always maintain visual reference and cross-check with the
aircraft's instruments. The pilot in command remains responsible for the safe conduct of the flight.
